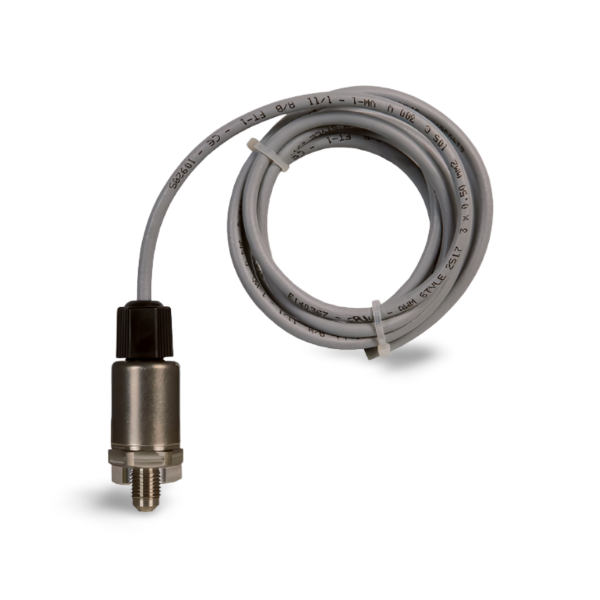

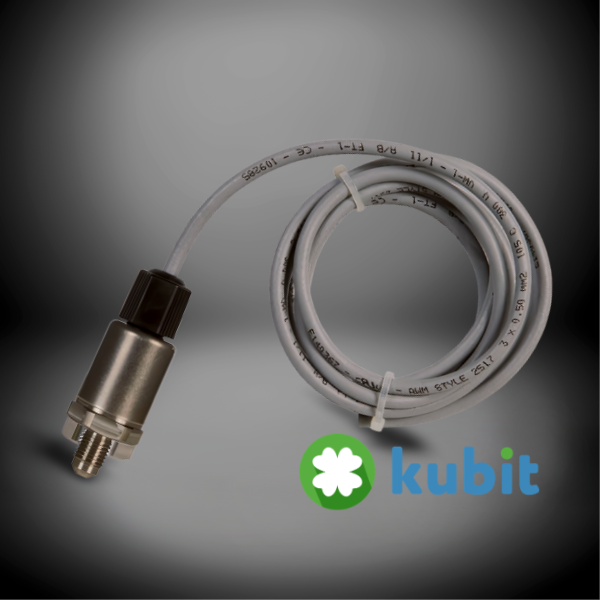

Transductor Eliwell EWPA (0 - 30 BAR)

Part Number TD220030B

Operating Temperature -35…85

Storage Temperature 50…100

Power Supply 7..33Vdc

Power Draw 23mA

Operating Range 0…30 bar ( relative )

Output Signal 2 wires 4…20mA

Overload 3 times pressure range

Electrical connections 2m cable wire

Mechanical connections male connector female connector , 1/4 SAE (7/16" -20UNF)

Global error at T -10…80°C max ± 0,5% FS

Response time < 2ms

Material in contact with the environment AISI 316L

Enclosure rating IP67

Weight (g) Net 170 Width (L) Net 24 Height (Ht) Net 24 Depth (P) Net 61

Weight (g) Packaging 200 Width (L) Packaging 130 Height (Ht) Packaging 135 Depth (P) Packaging 45

Medium tem -40…135
